Highlights
– Dual Intel 64-bit Xeon server-class processors
– Fast 800MHz front side bus; 1MB L2 cache
– PCI Express graphics; 256MB DDR memory
– 2 250 GB SATA Hard Drives
– 4 SATA Hotswap HDD Bays
– SATA Dual Layer DVD Recorder
– 1 GB DDR333 CL2.5 Registered ECC SDRAM
– AC'97 Audio, 6 Channel Sound
Condition
- Brand new: fully tested and ready to ship
Specifications
- Dual 2.8 GHz Intel Xeon server-class processors
– Next-generation Intel Xeon EM64T "Nocona" processors
– Fast 800MHz front side bus; 1MB L2 cache
– Swiftech MXC604-V Socket 604 CPU Coolers
- Supermicro X6DAL-XTG Motherboard
– Exceptionally reliable Intel E7525 server chipset
- ATI Radeon X600 XT PCI Express (x16) graphics
– 256MB of high performance 128-bit DDR memory
– DVI & VIVO:Video-In/Video-Out
- 1 GB RAM (2) 64M x 72-bit (512MB) DDR333 CL2.5 SDRAM
(Synchronous DRAM) Registered 184-Pin ECC DIMM
– 6 DIMM slots; expandable to 24 GB RAM
- Marvell 88SX6041-4 SATA Controller with (4) SATA ports
– RAID 0, 1, and JBOD support
- Intel 6300ESB (Hance Rapids) SATA Controller with (2) SATA
ports
– RAID 0, 1, and JBOD support
- Dual, ultra-fast hard drives for performance and reliability
– Reliable IBM/Hitachi SATA hard drives with 8 MB buffer
– 250 GB IBM/Hitachi primary hard drive
– 250 GB IBM/Hitachi secondary hard drive
– Instant system restore: secondary drive mirrors primary drive;
zero down time if either drive fails if configured as optional RAID-1
array
- Ultra-fast Plextor PX-716SA SATA Dual Layer optical drive
– 16X speed = 1 hour DVD recording in less than 4 minutes
– Dual-layer capability offers huge 8.5 GB DVD storage
– Fast and compatible: 16X DVD+R, 16X DVD-R, 8X DVD+RW,
4X DVD-RW, 6X DVD+R DL, 6X DVD-R DL, 48X CD-R,
24X CD-RW, 48X CD-ROM, 16X DVD-ROM
- Fast and plentiful ports at front and rear:
– (7) USB 2.0 ports (2 front, 5 rear)
– (2) FireWire 800/IEEE 1394b ports
– (2) Fast UART 16550 serial ports
– (1) ECP/EEP parallel port
– 10/100/1000 Gigabit Ethernet port
- 7-in-1 memory card reader (USB 2.0) + 1.44 MB floppy drive
– CompactFlash (Type I & II), Microdrive, Secure Digital, MultiMedia, Memory Stick, Memory Stick Pro, SmartMedia
- Five expansion slots:
– (1) PCI Express x16 slots
– (2) 64-bit PCI-X slots
– (2) 32-bit PCI slots
- AC'97 six-channel audio

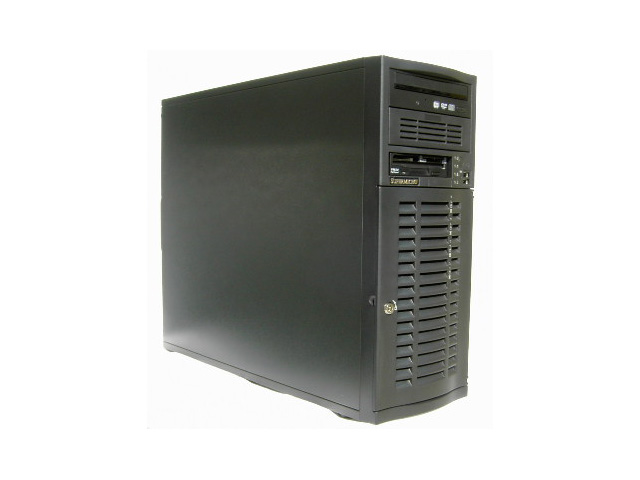

- Supermicro CSE-733T-450B Black Chassis
– Elegant, top-quality mid-tower case
– (4) Covered SATA Hotswap drive bays
– (2) External 5.25" drive bays
– (1) External 3.5" drive bay
– 450W ultra-quiet international power supply
– System dimensions: 7"(W) x 16.69"(H) x 22"(D)
178mm (W) x 424mm (H) x 559mm (D)
– Weight: 40 lbs / 18 kg (base system, without external cables)
For Component Details follow the links below:
- Supermicro Black Mid Tower Chassis 450W PS CSE-733T-450B
- Supermicro Intel E7525 Chipset X6DAL-XTG Motherboard
- Dual 64-bit 2.8Ghz Intel Xeon EM64T CPUs, 800mhz FSB,1 Meg L2 SL7DV
- Swiftech MXC604-V Socket 604 Coolers
- (2) IBM Hitachi Deskstar 7K250 250GB SATA HDD w/8MB Buffer 500GB Total
- (2) Kingston KVR333X72RC25/512 512MB DDR333 PC2700 ECC Reg Memory 1GB Total
- Sapphire ATI Radeon X600 XT PCI Express 256MB DDR Video Card with DVI & VIVO:Video-In/Video-Out
- Plextor PX-716SA/SW DVD±R/RW CD-R/RW 6X Dual Layer SATA DVD Recorder
- Mitsumi FA404M 7-in-1 USB 2.0 Flash Media + FDD
- NitroAV 7-Port Firewire 800/1394b and USB 2.0 Professional 64bit Bus Host Adapter
|
|
Key features
- Dual Intel Xeon server-class processors
- PCI Express graphics
Target users
Power users with demanding multi-tasking, graphic intense requirements. Especially suited to graphics artists, 3D animators, video editors and others who run multiple simultaneous applications, which operate more fluidly across multiple CPUs.
Dual Intel Xeon server-class processors
Intel Xeon processors drive the industry's most powerful servers and high-end workstations.
This workstation offers the very latest dual Xeon EM64T processors, enabling fluid simultaneous operation of multiple applications and a much more responsive Windows user interface.
Dual Xeon processors offer an improved experience for all workstation users in a graphic intense environment that are constantly multi-tasking applications. Dual processors offer especially critical performance benefits for 3D artists, who run multiple applications creating 3D renderings in real time.
PCI Express (x16) graphics
 PCI Express is the new industry standard for accelerated graphics, replacing AGP.
This workstation offers an ATI RADEON™ X600XT Chipset PCI Express graphics controller that features 256MB of high performance 128-bit DDR memory that accelerates all of your 3D applications . Xperience Xotic worlds jolted to life by the industry's most feature-rich VPU, with hardware acceleration of all that DirectX® and OpenGL can bare. Experience the stunning special effects delivered by Smartshader 2.0™'s Full Precision DX9 Shader support and lose yourself in vivid landscapes devoid of jagged edges forged by SmoothVision 2.1™'s Advanced (2x/4x/6x) AA and (2x/4x/8x/16x) AF technologies. The tools of Xtreme Xpression have arrived!
Optional: Windows XP Media Center Edition 2005
 Microsoft Windows XP Media Center Edition 2005 can be installed on this workstation with the addition of a Hauppauge or other high quality TV tuner. Microsoft Windows XP Media Center Edition 2005 builds advanced PVR (personal video recorder) features and media management into the foundation of Windows XP Professional*.
Now you can integrate desktop TV within a professional workspace, with the ability to pause or pre-record programs for maximum control. From CNBC to CNN, capture essential broadcasts on demand.
*Windows XP Media Center Edition 2005 should not be installed in a system that must be attached to an enterprise network domain. This capability of XP Professional is not included with XP Media Center Edition 2005. |
|
